     WCL - Large Flow Rate



Performance Range
- Power up to 5HP (3.7kW)
- Flow rate up to 1,100L/min
- Total Dynamic Head up to 28 m

Features
- Mitsubishi Electric induction motor totally enclose fan cooled type IP55 protection with insulation class F for continous operation
- Built-in thermal protector in 1/2HP to 1 1/2HP model
- Stainless steel (SUS304) impeller with laser welding for highest strength
- Cast iron pump body with stainless steel (SUS304) shaft

Application
- Suitble for rain and gravity irrigation. Pumping water from lakes, rivers, well and for various kind of industrial uses where high delivery rates are required at low to average heads.




ACL-755S
ACL-1105S
WCL-1505S
WCL-2205S
WCL-2205FS
WCL-3705FS
WCLL-3705FS
WCL-1505T
WCL-2205T
WCL-2205FT
WCL-3705FT
WCLL-3705FT



ACL-755S
Large Flow Rate Centrifugal Pump : 1Hp 1Phase
Bore size 2 1/2" x 2 1/2"
Download Specification
Download Manual
ACL-1105S
Large Flow Rate Centrifugal Pump : 1.5Hp 1Phase
Bore size 2 1/2" x 2 1/2"
Download Specification
Download Manual
WCL-1505S
Large Flow Rate Centrifugal Pump : 2Hp 1Phase
Bore size 3" x 3"
Download Specification
Download Manual
WCL-2205S
Large Flow Rate Centrifugal Pump : 3Hp 1Phase
Bore size 3" x 3"
Download Specification
Download Manual
WCL-2205FS
Large Flow Rate Centrifugal Pump : 1Hp 1Phase Flange type
Bore size 3" x 3"
Download Specification
Download Manual
WCL-3705FS
Large Flow Rate Centrifugal Pump : 5Hp 1Phase Flange type
Bore size 2 1/2" x 2"
Download Specification
Download Manual

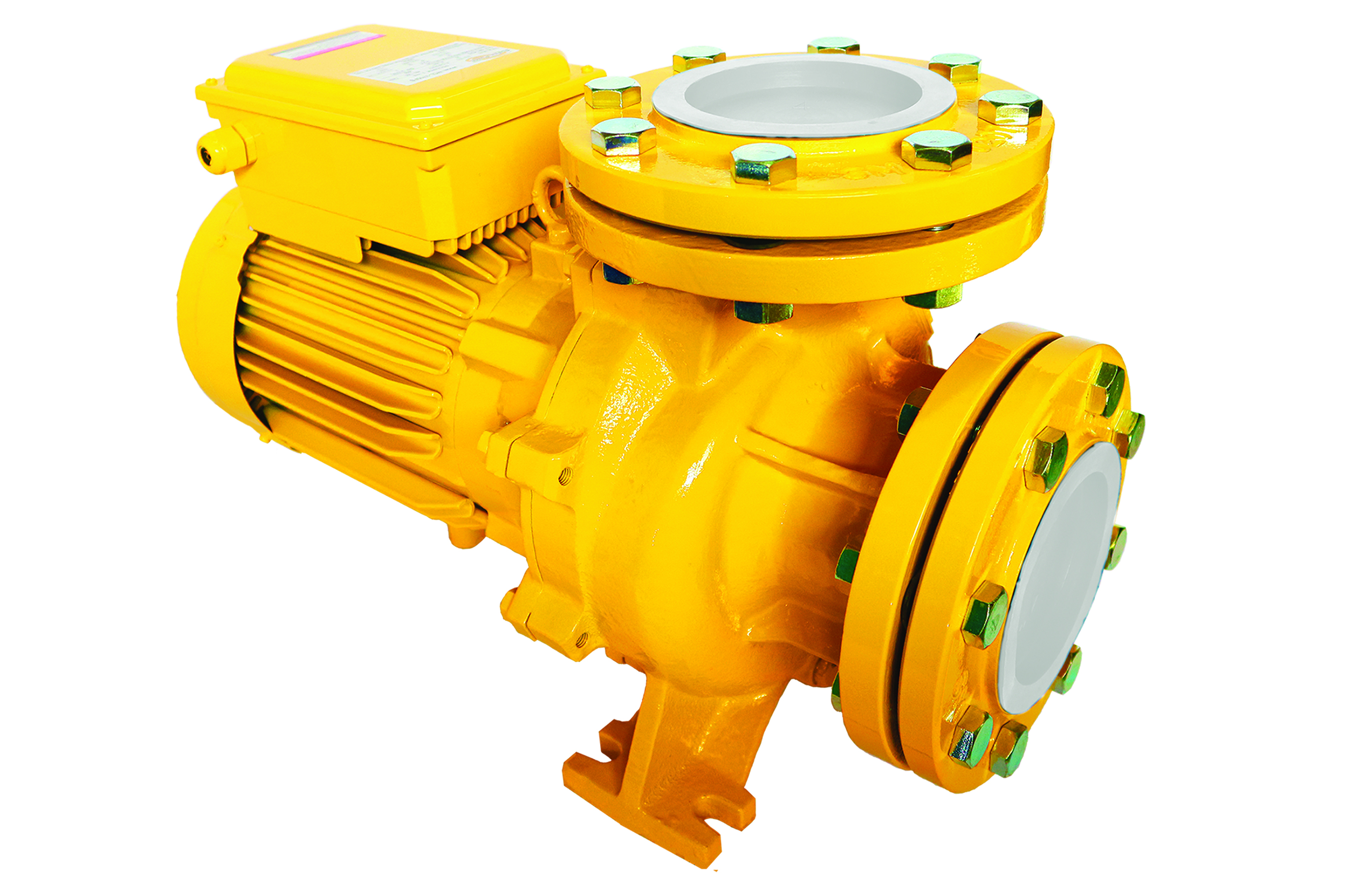

WCLL-3705FS
Extra Large Flow Rate Centrifugal Pump : 5Hp 1Phase Flange type
Bore size 4" x 4"
Download Specification
Download Manual
WCL-1505T
Large Flow Rate Centrifugal Pump : 2Hp 3Phase
Bore size 3" x 3"
Download Specification
Download Manual
WCL-2205T
Large Flow Rate Centrifugal Pump : 3Hp 3Phase
Bore size 3" x 3"
Download Specification
Download Manual
WCL-2205FT
Large Flow Rate Centrifugal Pump : 3Hp 3Phase Flange Type
Bore size 3" x 3"
Download Specification
Download Manual
WCL-3705FT
Large Flow Rate Centrifugal Pump : 5Hp 3Phase Flange type
Bore size 2 1/2" x 2"
Download Specification
Download Manual
WCLL-3705FT
Extra Large Flow Rate Centrifugal Pump : 5Hp 3Phase Flange type
Bore size 4" x 4"
Download Specification
Download Manual
